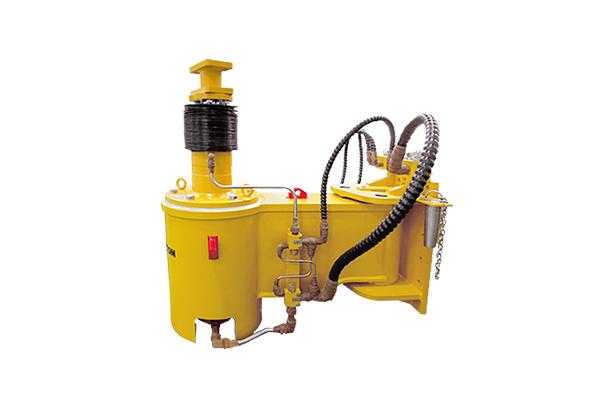

Retractable Test Stump Handler

The RETRACTABLE TEST STUMP HANDLER is designed to move up the test stump to BOP stack connector for testing and for supporting the connector during removal at the storage position.




Fixed type


Skid type


Swing type




Specification


Project
Drillship
Project Name
PDC / Pride / Seadrill / QGOG / Ocean Rig / Cobalt / Sonangol / Transocean
Item
Retractable Test Stump Handler
Class
ABS / DNV
S.W.L
3 Ton / 20 Ton / 25 Ton / 30 Ton / 35 Ton
Material
DH36
Area Classification
Zone 2
Design Temp.
-20℃ to +45℃
Max. Working Pressure
207 bar
Weight
1700kg(Fixed) / 1200kg(SKID) / 1200kg(Swing)
Size
1200×1200×2900(Fixed) / 2900×700×1500(SKID) / 1300×540×1260(Swing)





Design verification

3D Modeling


Analysis





Load Test

ABS - Lifting Appliances (SWL+5t) / DNS - DNV-OS-E101 (SWL+5t)

25ton load test


40ton load test
