GENERAL
Optiplex XE3 (Small Form Factor type, SFF and Mini Tower type, MT) PCs are type approved for marine usage by ABS, BV, DNVGL, KR, LR, NK, CCS when they are used in conjunction with TD Kits. They are also IACS E10&IC60945 approved for a wheel-house/bridge installation.
Optiplex XE3 PCs are made by Dell and TD Kits by Tetradyne. TD Kits are designed for protection against vibration and shock caused by marine environments surrounding in vessels and offshore constructure. The kits allow users to install the PCs in safe & reliable fixation where they want to install.
There are 3 types of TD kits. For XE3 MT, there are TVK-XE3-TH (horizontal installation) and TVK-XE3-TV (vertical installation). For XE3 SFF, there is TVK-XE3-SH (horizontal installation)
The combination (XE3 + TD Kits) can be efficiently used in various marine applications such as controlling, monitoring, loading, detecting, networking, etc.
KEY FEATURES
- 8th Generation Intel Core i3 / i5 / i7
- DDR4 4GB 2666MHz (up to 32GB)
- SATA III HDD / SSD (up to 2TB)
- Type Approved by ABS, BV, CCS, KR, LR, NK
- IACS UR E10 & IEC60945 approved for a wheel house / bridge installation
- Windows 10 PRO (64-bit)
SPECIFICATION
| GENERAL FEATURE | |
| Section | Specifications |
| CPU | Intel 8th Generation Core i3/i5/i7 |
| OS | Windows 10 PRO (64-bit) |
| Memory | DDR4 4GB 2666MHz (up to 32GB) |
| Chipset | Intel Q370 Chipset |
| Storage | SATA HDD/SSD up to 2TB |
| Graphic | Intel UHD630 |
| Networking (LAN) | Intel 1219LM Etherent |
| Input Types | 10 x USB : 1 x 3.1 Type-C 5 x 3.1 Type-A (1 front, 4 rear) 4 x 2.0 Type-A (2 front, 2 rear) 1 x RJ 45 2 x DisplayPort 1 x Serial 2 x PS/2 1 x Audio Jack 1 x Line-out Optional: 1 x Video Port (VGA/DP/HDMI 2.0b/USB Type-C alt-mode, USB Add-in-card, Serial Add-in-card |
| Number of Bays (max) | 1 internal 3.5'' HDD 2 internal 2.5'' HDD 1 internal slim ODD |
| Expension Slots | 1 Full Height PCIe x 16 1 Full Height PCIe x 16 (wired x 4) 1 Full Height PCle and PCle x 1 1M.2 for storage (22x80mm / 22x30mm) |
| Power Consumption | 360W (80 PLUS Gold) |
| Dimension (PC with kit) | 350 (H) x 154 (W) x 274 (D) mm |
| Weight (PC with kit) | 7.93kg |
| Temperature Range | Operating : 0℃ to 70℃ Non-Operating : -20℃ to 60℃ |
| Humidity Range | Operating : up to 95% Non-Operating : up to 95% |
| Optical Drive Device | 8xDVD-ROM 9.5mm ODD (Option) 8xDVD+/-RW 9.5mm ODD (Option) |
| Certification | ABS, BV, CCS, DNVGL, KR, LR, NK, IEC60945 |
| Warranty | 24 months |
DRAWING

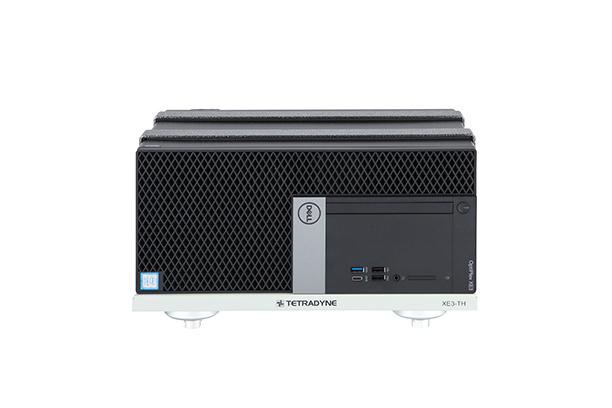

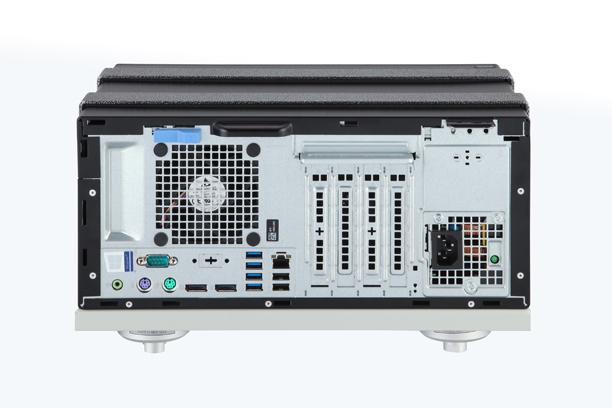

TVK-XE3-TH (TD Kit for XE3 Mini Tower, Horizontal Installation)

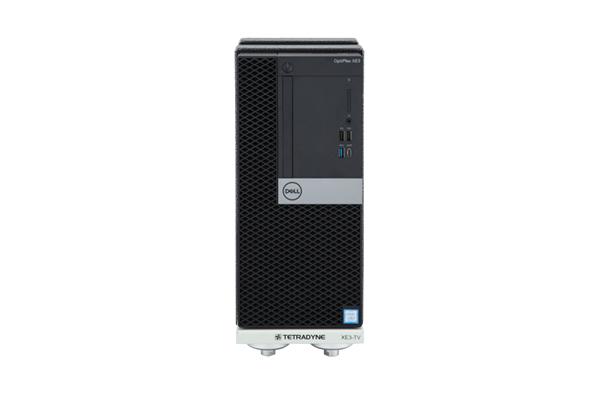

TVK-XE3-TV (TD Kit for XE3 Mini Tower, Vertical Installation)
