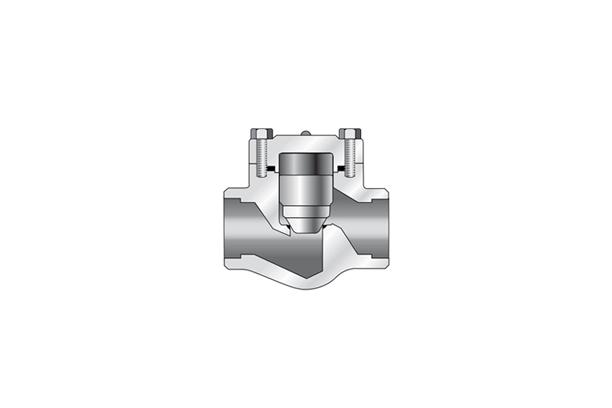

Lift Check Valve _ Forged Steel (Forged Valve)
Model
-
Series
Industrial Valves
Product Description
Application
■ Lift Check Valve have an advantage over most other types of check valves in that they need only a relatively short lift to obtain full valve opening. The lift check valve uses a free-moving closure element that is placed above the seat. It prevents backflow and maintains pressure. The lift check valve is recommended to install in horizontal piping lines because the disc is pushed up by the flow until the flow reverses when gravity and down stream pressure close the closure element against the seat.
Specification
| Design Rating | API 800, 1500 / ANSI 150, 300, 600, 900, 1500, 2500, 4500 |
| Design Size | 3/8" ~ 2" |
| Material | Forged Carbon Steel, Forged Stainless Stee, Forged Alloy Steel |
| End Connection | SW, BW, Flanged, Threaded |
| Feature | Bolted Cover / Welded Cover, Intergral Seat |
