Sandong Metal Industry
Ball Valve
Model
TR3
TF3
Series
Ball Valve
Product Description
• 5 1/8” CWP 10,000psi, Tested at 15,000psi with Four 4” 1002 Female Inlets
• Material : AISI 4135
• Hard faced on critical area
• 7 1/16” CWP 10,000psi Tested at 15,000psi with Four 4”1002 Female Inlets
• Material : AISI 4135
• Hard faced on critical area
Kinds of products description
Psi | Fig | |||||||
---|---|---|---|---|---|---|---|---|
TF 1" | TF 2" | TF 2 1/2" | TF 3" | TR 2" | TR 4" | BTF 2" | BTR 2" | |
1000 | - | - | - | - | ★ | ★ | - | - |
1500 | - | - | - | - | ★ | - | - | - |
2000 | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ★ |
3000 | ★ | ★ | - | ★ | - | - | - | - |
5000 | ★ | - | - | - | - | - | - | - |

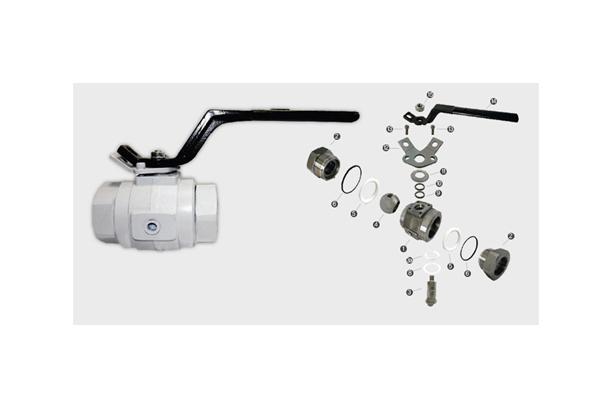

TR3/TF3 Series Three Piece Floating Ball Valve
NO | DESCRIPTION | Material | Q'ty |
---|---|---|---|
3000 & 4000PSI | |||
1 | Body | A350 LF2 | 1 |
2 | End Caps | A350 LF2 | 2 |
3 | Stem | 17-4PH | 1 |
4 | Ball | 316SS | 1 |
5 | Seats | Delrin | 2 |
Body O-Rings | Viton | 2 | |
6 | Stem O-Rings | Viton | 1 |
7 | Thrust Washer | Delrin | 1 |
8 | Packing | Teflon | 1 |
9 | Packing Follower | Stainless Steel | 1 |
10 | Belleville Washer | Stainless Steel | 1 |
11 | Gland Flange | Carbon Steel, Plated | 1 |
12 | Cap Screws | Stainless Steel | 2 |
14 | Handle | Carbon Steel | 1 |
15 | Handle Nut | Carbon Steel | 1 |
Product List
Ball Valve
Manifold
Plug Valve

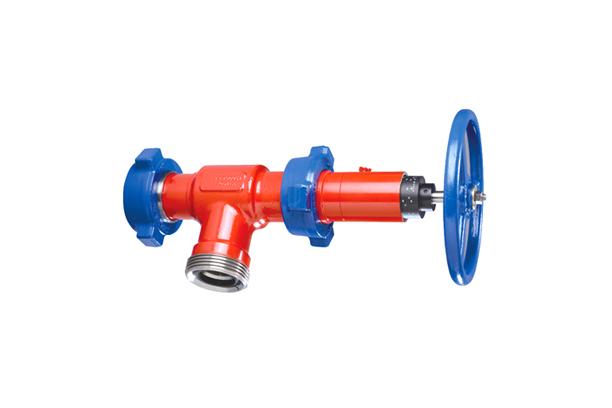

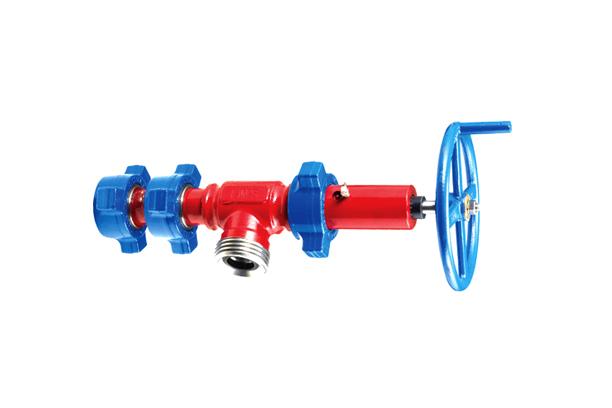

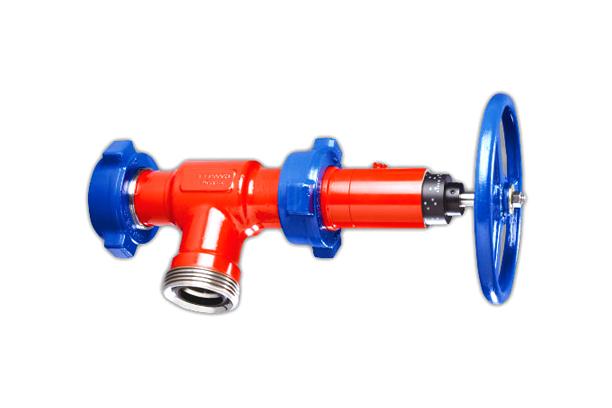

Choke Valve

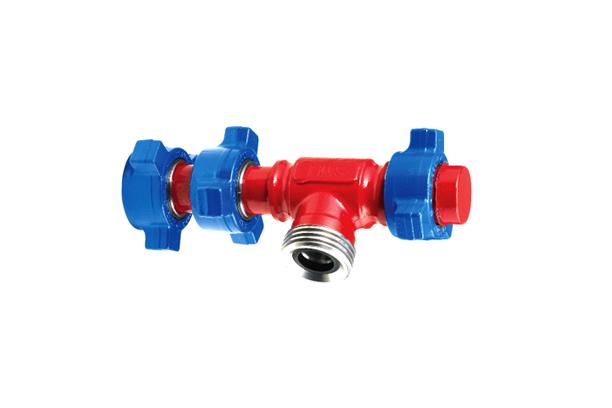

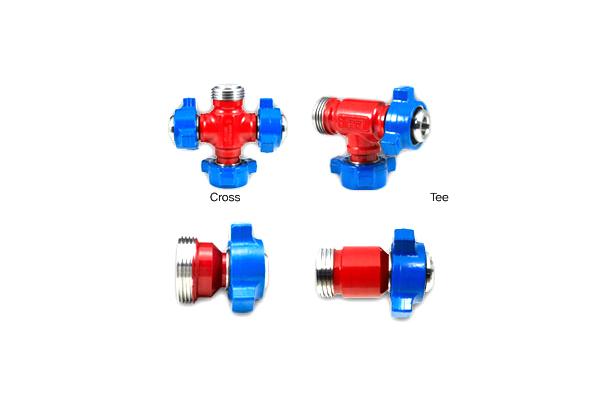

Integral Fittings

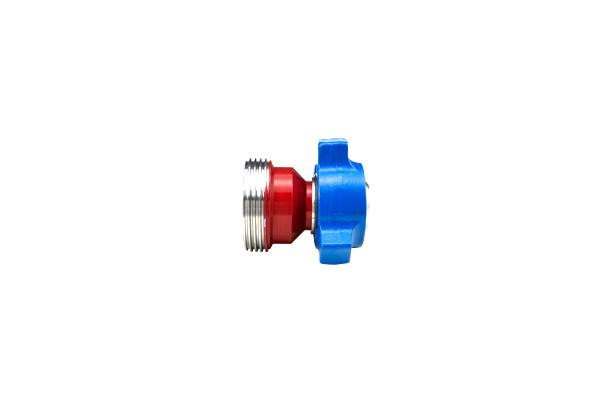

Adapter
Swivel Joint
Cementing

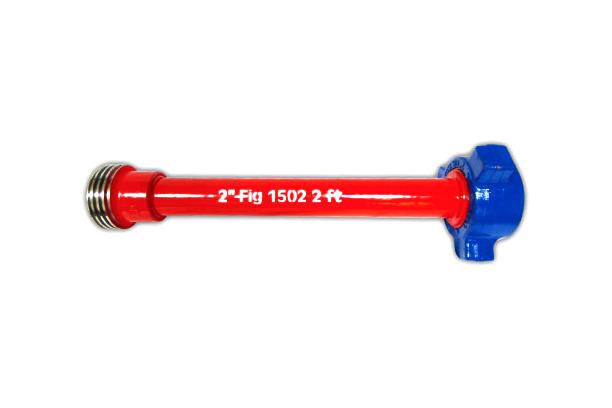

Pup Joint

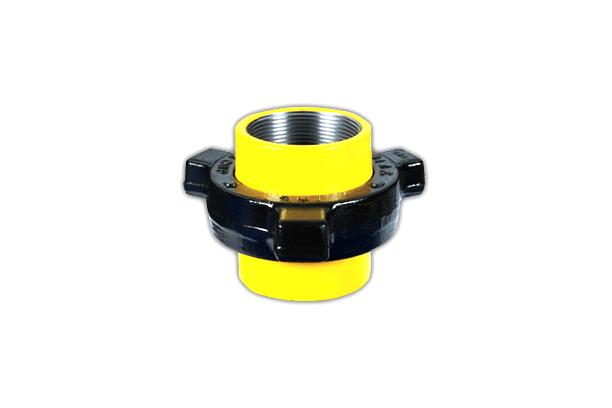

Hammer Union
