Sandong Metal Industry

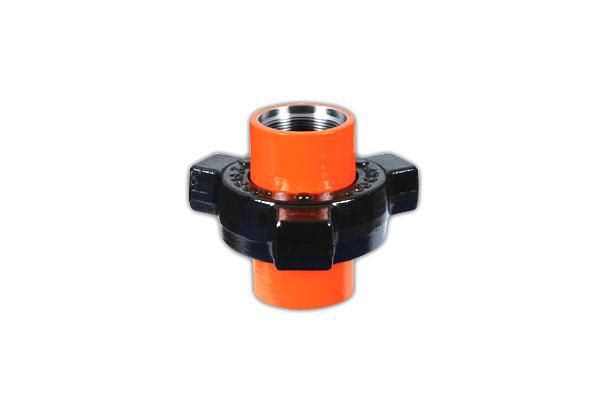

Hammer Union
Model
Fig 602
Series
Hammer Union
Product Description
| Dim | 1” | 2” | 3” | 4” | ||||
|---|---|---|---|---|---|---|---|---|
| WT. | THD | B/W | THD | B/W | THD | B/W | THD | B/W |
| A | 2 1/4 | 2 1/4 | 3 17/32 | 3 17/32 | 4 1/2 | 4 1/2 | 5 5/16 | 5 5/16 |
| B | 1 3/4 | 1 5/16 | 3 | 2 25/64 | 4 1/4 | 3 1/2 | 5 5/16 | 4 1/2 |
| C | 3 17/32 | 3 17/32 | 5 1/4 | 5 1/16 | 6 1/4 | 5 7/16 | 8 7/32 | 5 43/64 |
| D | 1 7/64 | 19/32 | 2 1/16 | 1 1/2 | 3 3/16 | 3 5/64 | 4 1/64 | 3 5/32 |
| WT(lb) | 3.8 | 3.57 | 12.6 | 13.9 | 25 | 26.4 | 37 | 35 |
| P/N | HU01FF1101 | HU01FF3101 | HU02FF1101 | HU02FF3101 | HU03FF1101 | HU03FF3101 | HU04FF1101 | HU04FF3101 |
