Shinmyung Tech
Model
PV200/PX200
PV4/PX4
PV8/PX8
PV15/PX15
PV20
Series
Air Driven Diaphragm Pump
Product Description
[SPECIFICATION]
|
MODEL |
PV200/PX200 |
PV4/PX4 |
PV8/PX8 |
PV15/PX15 |
PV20 |
|
|
CAPACITY |
5 ㎥/hr |
10 ㎥/hr |
20 ㎥/hr |
25 ㎥/hr |
40 ㎥/hr |
|
|
SUCTION LIFT |
DRY |
- 5.4 m |
- 7.3 m |
- 7.3 m |
- 7.6 m |
- 4.3 m |
|
WET |
- 9.3 m |
- 9.5 m |
- 9.5 m |
- 9.5 m |
- 8.6 m |
|
|
DISCHARGE HEAD |
30 m |
30 m |
35 m |
35 m |
30 m |
|
|
SUCTION SIZE |
1"(25A) |
1-1/2"(40A) |
2"(50A) |
3"(80A) |
4"(100A) |
|
|
DISCHARGE SIZE |
1"(25A) |
1-1/2"(40A) |
2"(50A) |
3"(80A) |
4"(100A) |
|
HAnd Piston Pump
[SPECIFICATION]
|
CAPACITY |
80ℓ/min |
|
SUCTION LIFT |
-8m |
|
DISCHARGE HEAD |
10m |
|
SUCTION SIZE |
1-1/2"±(40A) |
|
DISCHARGE SIZE |
1-1/2"±(40A) |
Hand Wing Pump
[SPECIFICATION]
|
CAPACITY |
30-70ℓ/min |
|
SUCTION LIFT |
-8m |
|
DISCHARGE HEAD |
10m |
|
SUCTION SIZE |
~1-1/2"±(40A) |
|
DISCHARGE SIZE |
~1-1/2"±(40A) |
Product List
Air Driven Diaphragm Pump
Air Motor
Winch

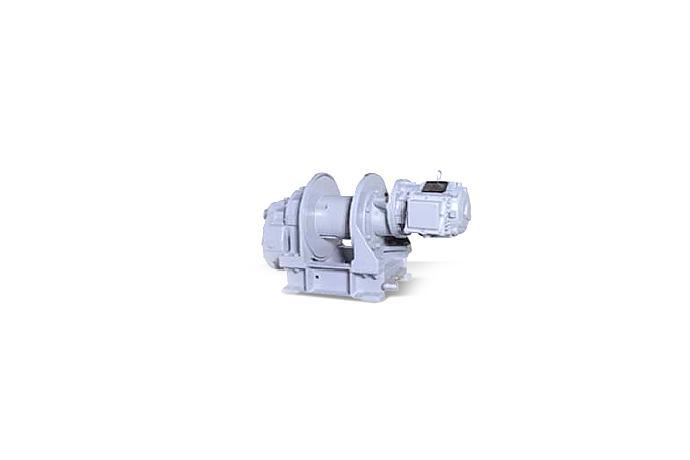

SMW Winch with Electric Motor
SMW-3E, SMW-5E, SMW-9E, SMW-10E, SMW-30E, SMW-50E

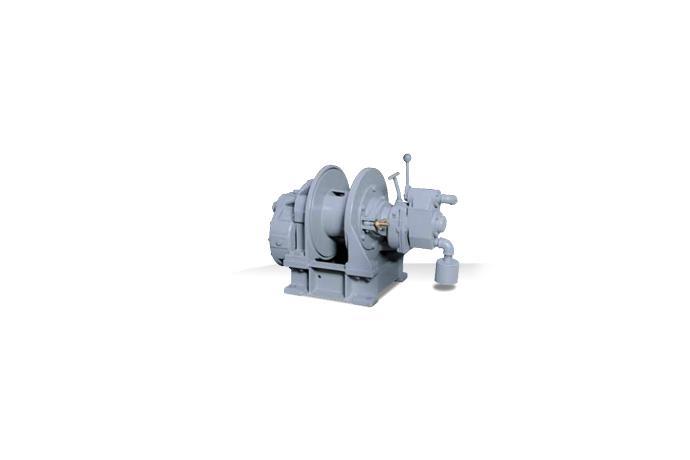

SMW Winch with Air Motor
SMW-2A, SMW-3A, SMW-5A, SMW-9A, SMW-10A, SMW-30A, SMW-50A, SMW-70A
SMW Reducer with Worm Gear

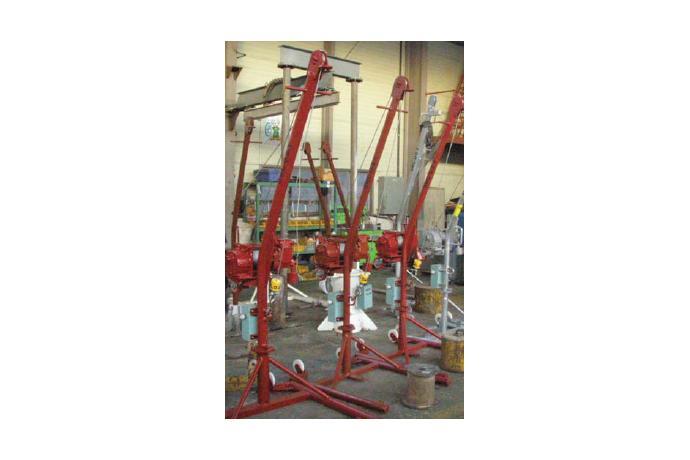

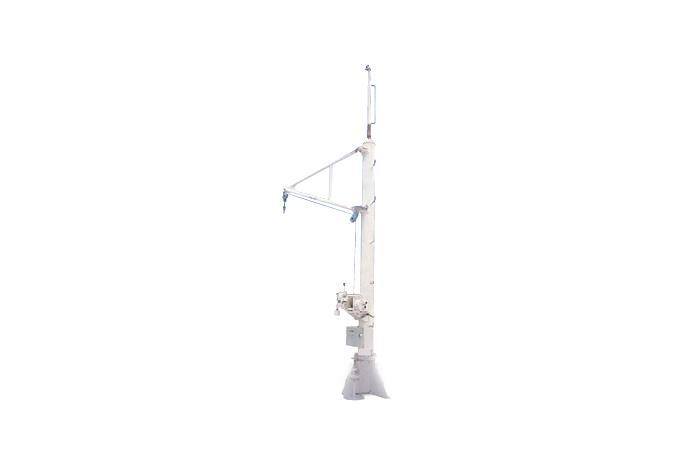

Miscellaneous Davit
Sludge & Injured Person Handling Davit / Steering Gear Room Davit
SMSHD
Suez Canal Search Light Davit
SMSHD
Bosun Store Davit / Pump Room Davit
SMBSD, SMPRD
Fuel Oil Hose Handling Davit
SMFOD
EM'CY Cargo Pump Handling Davit
SMFOD
Suez Moving Boat Handling Davit
SMSMD

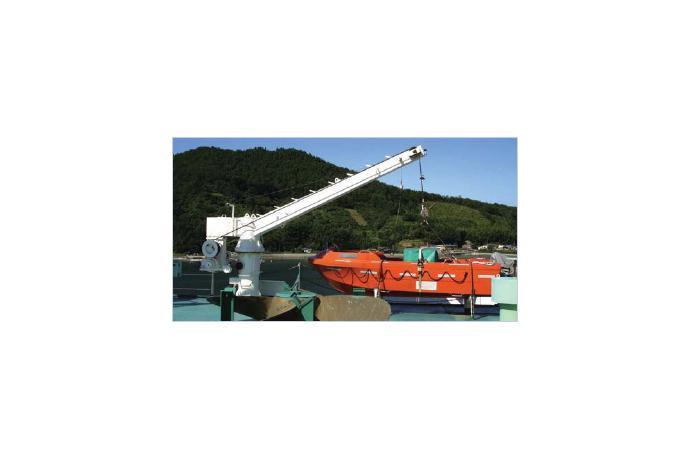

Rescue Boat Davit & Rescue Boat / Life Raft Davit
SMRBD-SD, SMRB&LRD-FT, SMRB&LRD-TW, SMRB&LRD-TF
Life Raft Davit
SMRB&PVD, SMRB&LRD-FT, SMRB&LRD-TF, SMRB&LRD-TH

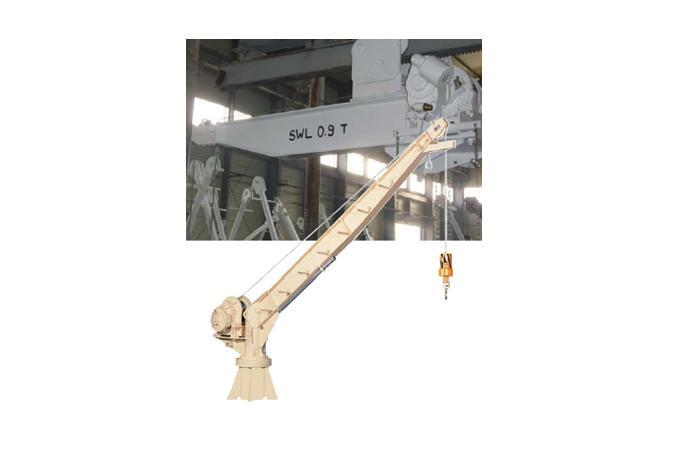

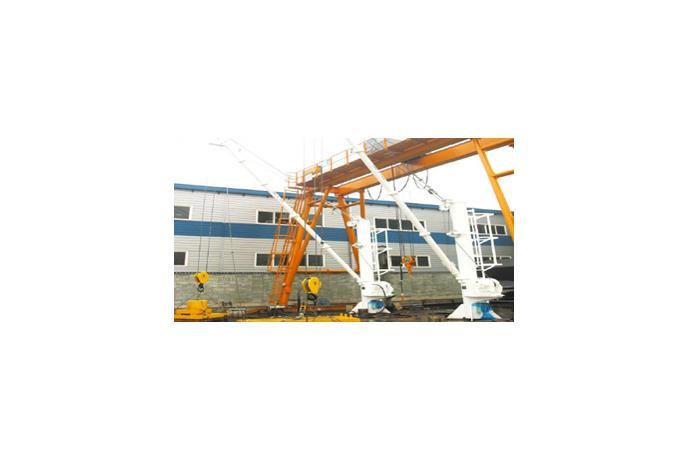

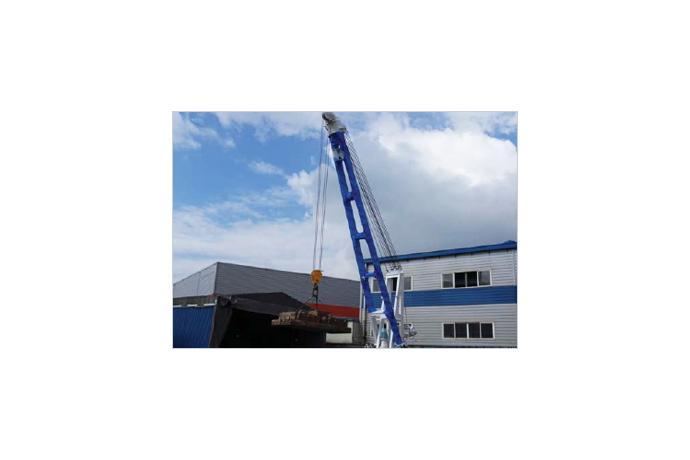

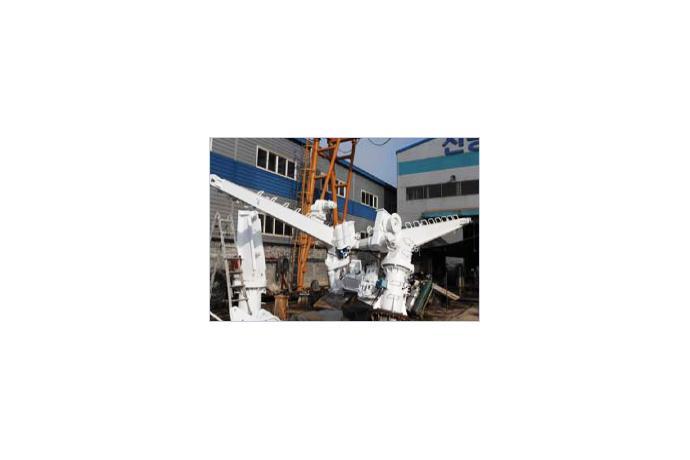

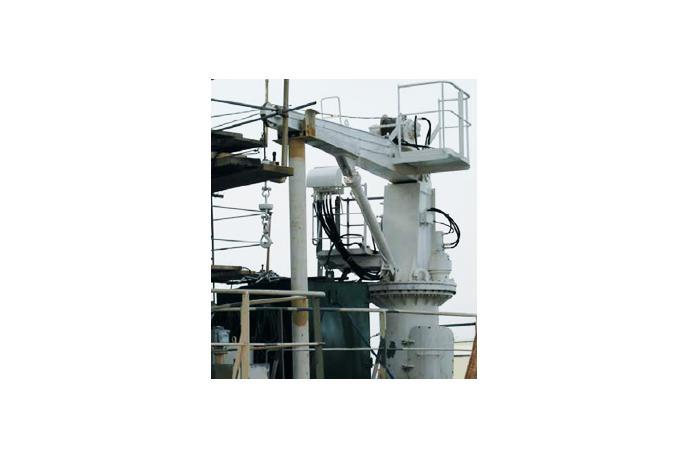

Crane

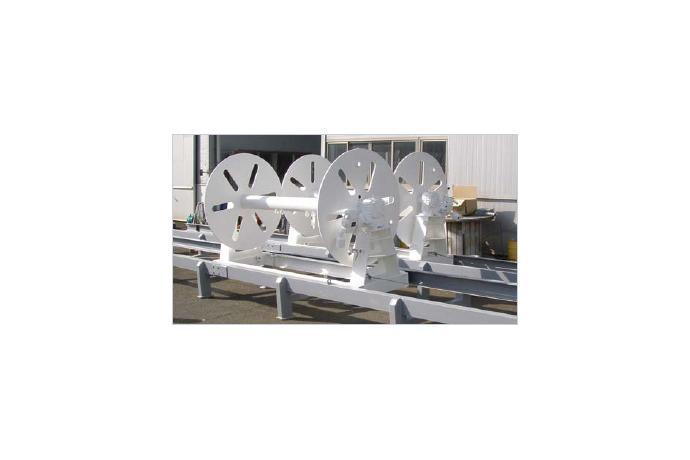

Pilot Ladder Reel & Fire Wire Reel

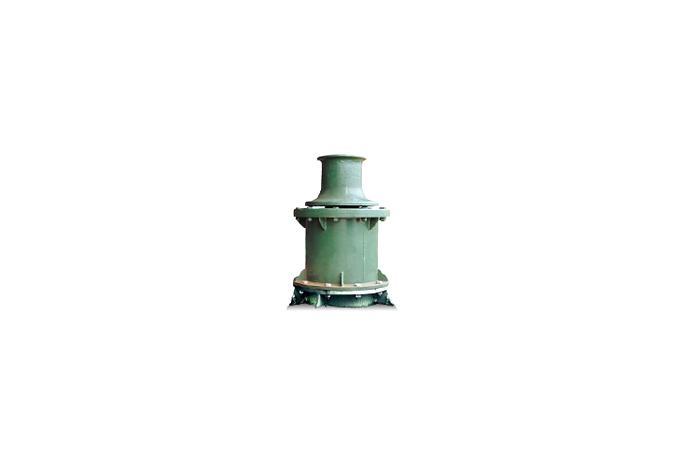

Capstan
