SMW Winch with Electric Motor

Model

SMW-3E SMW-5E SMW-9E SMW-10E SMW-30E SMW-50E

Series

Winch

Product Description

[Available with]

- Diverse gear reducrion
Electrical parts & accessories with various protection grades (explosion proof, water proof,etc)
- Junction box with protective cover
- Electric motors
- Limit switches for overhoisting, manual handle
- Remote push button
- Starter panel with various configurations

[SPECIFICATION- SMW winch with Electric Motor]

Heavy duty series for offshore application

TYPE

SMW-3E

SMW-5E

SMW-9E

SMW-10E

SMW-30E

SMW-50E

CAPACITY(kg)

500

1000

2000

2500

3000

5000

ROPE SPEED(m/min)

0~10(0~20)

0~20

0~12

0~8

50Hz

60Hz

ROPE Dia(m) xLength(m)

8 x 50

10 x 50

14 x 50

16 x 50

16 x 150

18 x 125

GEAR RATIO(i)

1/149

1/127

1/49

1/60

1/110

1/290

ELEC. MOTOER(kW×POLE)

1.5 x 4

2.2 x 4

11 x 6

19 x 6

11 x 4

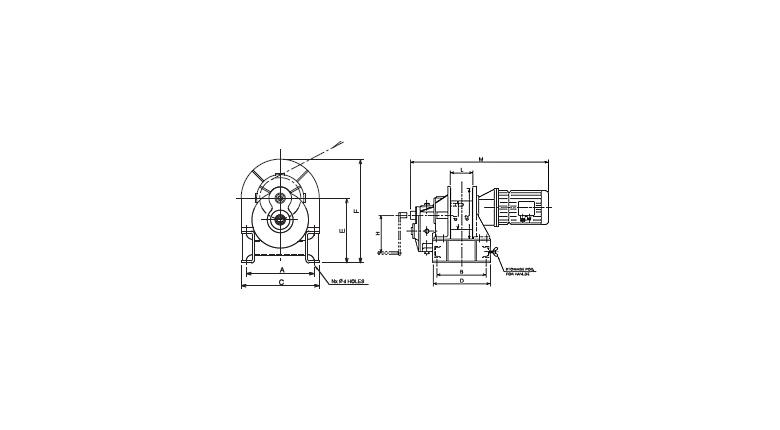

DIMENSION

(mm)

A x B

280x270

330x330

360x410

440x440

390x677

350x900

C x D

320x325

380x380

410x465

495x510

575x817

660x1330

E x F

240x395

315x510

400x605

430x678

460x737

595x915

d1 x d2

165.2x300

190.7x355

216x385

265x450

267.4x510

355.6x586

N x Ød

4x18

4x21

4x25

8x18

8x22

830

916

1091

1278

1829

2109

120

140

226

260

232

610

200

250

275

300

330

NET WEIGHT(KG)(ABT.)

130

200

300

440

780

1350

Pictorial and dimensional data is subject to change without notice.
The information presented in this catalogue is based on technical data and test results of nominal units.

Wire rope guides
- For normal wire rope construction (18x7,Non-rotating type) the maximum advisable fleet angle is 4 degrees
- With turn free wire rope, this is maximum of 2.5 degrees.
