SAMBU

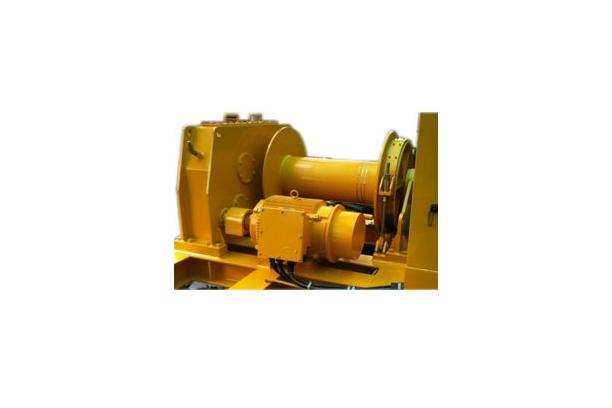

Electric winch
Model
SE2-0320
SE2-0515
SE2-0815
SE2-1020
SE2-1320
SE2-1520
SE2-2010
SE2-3010
SE2-5020
SE2-8020
SE2-12005
Series
WINCH
Product Description
■ Electric driven type winch with the mechanical braking system.
■ In case of emergency, can be operated manually by the manual handle.
■ The Limit switch or magnetic brake can be installed.
■ The Additional winch seat can be made.
■ The explosion proof motor can be installed.
■ The clutch can be installed.
■ Application
- Accommodation ladder winch
- Pilot slant ladder winch
- Hoisting winch
- Davit & crane winch
- Towing winch
Specification
ELEC.WINCH for KOREAN NAVY
ELEC.WINCH for POSCO
MODEL | SAFE WORKING LOAD (kg) | ROPE SPEED AT 3LAYER (m/min) | ELEC' MOTOR (kw) | DRUM SIZE | DRUM CAPACITY | |||
A (mm) | B (Ø) | C (Ø) | WIRE ROPE (Ø) | LAYER - LENGTH(m) | ||||
SE2-0320 | 300 | 10 | 1.5 | 96 | 114 | 190 | 6.3 | 5 - 34 |
SE2-0515 | 500 | 15 | 2.2 | 144 | 165 | 300 | 10 | 5 - 47 |
SE2-0815 | 800 | 15 | 2.2 | 144 | 165 | 310 | 12 | 5 - 38 |
SE2-1020 | 1000 | 15 | 3.7 | 200 | 216 | 380 | 12 | 5 - 69 |
SE2-1320 | 1300 | 15 | 5.5 | 200 | 216 | 380 | 12 | 5 - 69 |
SE2-1520 | 1500 | 15 | 5.5 | 220 | 267 | 440 | 14 | 5 - 79 |
SE2-2010 | 2000 | 20 | 11 | 220 | 267 | 440 | 14 | 5 - 79 |
SE2-3010 | 3000 | 20 | 15 | 220 | 318 | 520 | 16 | 5 - 80 |
SE2-5020 | 5000 | 20 | 30 | 300 | 355 | 600 | 20 | 4 - 80 |
SE2-8020 | 8000 | 10 | 22 | 300 | 406 | 700 | 24 | 4 - 80 |
SE2-12005 | 12000 | 5 | 18.5 | 370 | 457 | 800 | 26 | 4 - 98 |
- According to the speed and the load, the motor capacity can be changed.
- According to the size and the length of a wire rope, the drum size can be changed.
