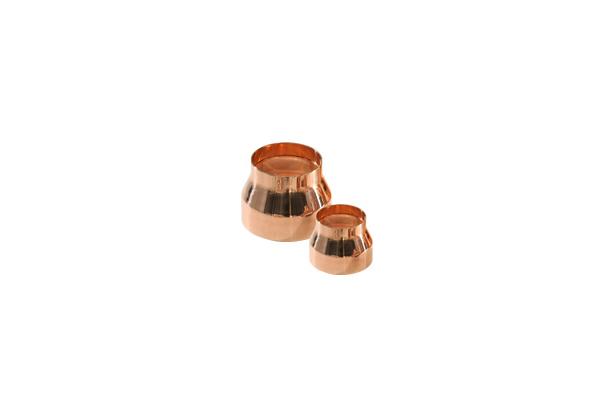

10K Socket Brazing Type Reducer For Copper Pipe
■ Material : JIS H3300 C1220T
Unit:mm
Pipe | Dimension | Remark | ||||||
---|---|---|---|---|---|---|---|---|
N/D (A) | O/D (mm) | D | D1 | L | A | A1 | t | |
10X6 | 15X10 | 15.1 | 10.1 | 29 | 12 | 10 | 1.4 | |
15X6 | 20X10 | 20.2 | 10.1 | 42 | 14 | 10 | 1.6 | |
15X10 | 20X15 | 20.2 | 15.1 | 35 | 14 | 12 | 1.6 | |
20X6 | 25X10 | 25.2 | 10.1 | 39 | 15 | 10 | 1.6 | |
20X10 | 25X15 | 25.2 | 15.1 | 36 | 15 | 12 | 1.6 | |
20X15 | 25X20 | 25.2 | 20.2 | 35 | 15 | 14 | 1.6 | |
25X6 | 30X10 | 30.3 | 10.1 | 50 | 16 | 10 | 1.6 | |
25X10 | 30X15 | 30.3 | 15.1 | 48 | 16 | 12 | 1.6 | |
25X15 | 30X20 | 30.3 | 20.2 | 47 | 16 | 14 | 1.6 | |
25X20 | 30X25 | 30.3 | 25.2 | 43 | 16 | 15 | 1.6 | |
32X10 | 35X15 | 35.3 | 15.1 | 63 | 18 | 12 | 1.6 | |
32X15 | 35X20 | 35.3 | 20.2 | 58 | 18 | 14 | 1.6 | |
32X20 | 35X25 | 35.3 | 25.2 | 51 | 18 | 15 | 1.6 | |
32X25 | 35X30 | 35.3 | 30.3 | 44 | 18 | 16 | 1.6 |
Pipe | Dimension | Remark | |||||||
---|---|---|---|---|---|---|---|---|---|
N/D (A) | O/D (mm) | D | D1 | L | A | A1 | T | t | |
40X15 | 45X20 | 45.3 | 20.2 | 77 | 20 | 14 | 2.0 | 2.0 | |
40X20 | 45X25 | 45.3 | 25.2 | 77 | 20 | 15 | 2.0 | 2.0 | |
40X25 | 45X30 | 45.3 | 30.3 | 62 | 20 | 16 | 2.0 | 2.0 | |
40X32 | 45X35 | 45.3 | 35.3 | 50 | 20 | 18 | 2.0 | 2.0 | |
50X20 | 55X25 | 55.4 | 25.2 | 96 | 22 | 15 | 2.0 | 2.0 | |
50X25 | 55X30 | 55.4 | 30.3 | 85 | 22 | 16 | 2.0 | 2.0 | |
50X32 | 55X35 | 55.4 | 35.3 | 77 | 22 | 18 | 2.0 | 2.0 | |
50X40 | 55X45 | 55.4 | 45.3 | 60 | 22 | 20 | 2.0 | 2.0 | |
65X25 | 70X30 | 70.4 | 30.3 | 112 | 26 | 16 | 2.0 | 2.0 | |
65X32 | 70X35 | 70.4 | 35.3 | 105 | 26 | 18 | 2.0 | 2.0 | |
65X40 | 70X45 | 70.4 | 45.3 | 90 | 26 | 20 | 2.0 | 2.0 | |
65X50 | 70X55 | 70.4 | 55.4 | 74 | 26 | 22 | 2.0 | 2.0 | |
80X32 | 85X35 | 85.4 | 35.3 | 138 | 30 | 18 | 2.5 | 2.5 | |
80X40 | 85X45 | 85.4 | 45.3 | 120 | 30 | 20 | 2.5 | 2.5 | |
80X50 | 85X55 | 85.4 | 55.4 | 99 | 30 | 22 | 2.5 | 2.5 | |
80X65 | 85X70 | 85.4 | 70.4 | 82 | 30 | 26 | 2.5 | 2.5 | |
100X40 | 110X45 | 110.5 | 45.3 | 170 | 34 | 20 | 3.0 | 3.0 | |
100X50 | 110X55 | 110.5 | 55.4 | 150 | 34 | 22 | 3.0 | 3.0 | |
100X65 | 110X70 | 110.5 | 70.4 | 129 | 34 | 26 | 3.0 | 3.0 | |
100X80 | 110X85 | 110.5 | 85.4 | 107 | 34 | 30 | 3.0 | 3.0 | |
125X65 | 140X70 | 140.6 | 70.4 | 160 | 45 | 26 | 3.0 | 3.0 | |
125X80 | 140X85 | 140.6 | 85.4 | 148 | 45 | 30 | 3.0 | 3.0 | |
125X100 | 140X110 | 140.6 | 1100.5 | 109 | 45 | 34 | 3.0 | 3.0 |
