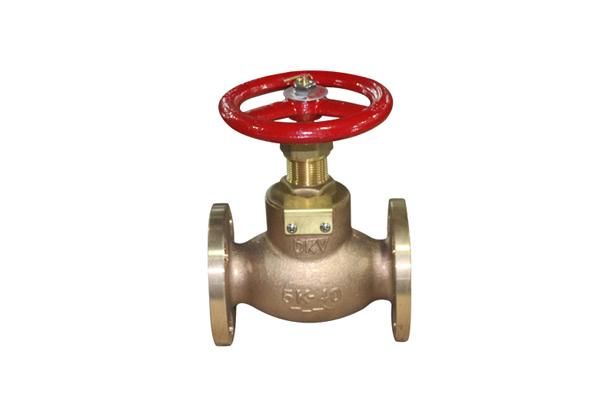

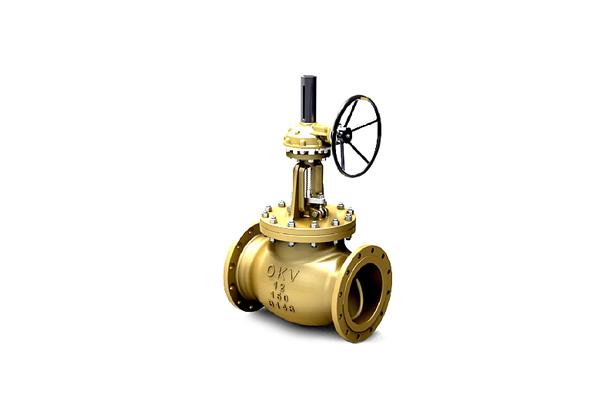

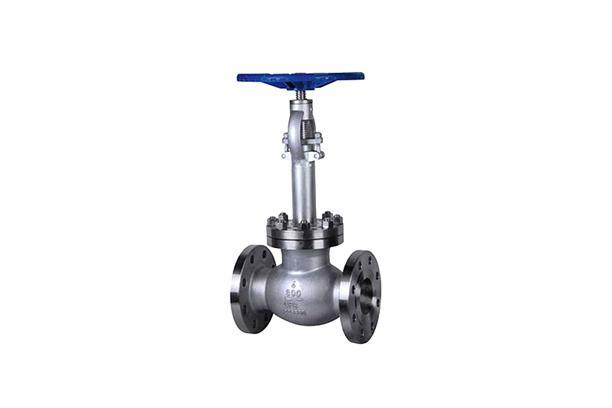

GLOBE VAVLE

Model

Series

ONSHORE

Product Description

Specification

Description	Glove valve is one of the linear action valves. Glove valves products are more varied than the gate valves because of its applicability. The fluid movement through the valve seat is in the same direction as the operation direction of the obturator. Only the disk can move the short distance to completely release the valve, which results in faster opening of the glove valve than a gate valve. Hence this is advantage to any occasion that requires frequent valve operations. However, it demands the change in fluid direction that results in resistance, creating turbulence. Therefore, glove valve results in more pressure loss than glove valve.

Description

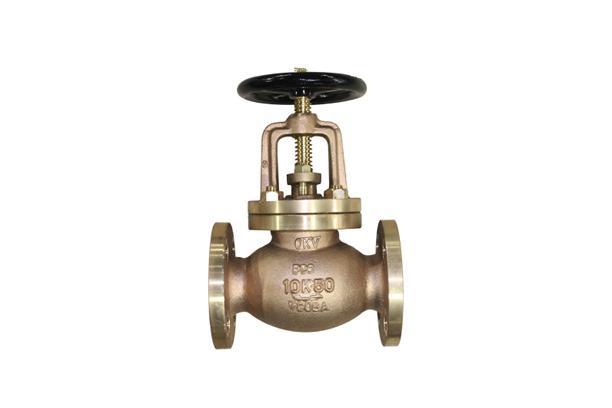

Glove valve is one of the linear action valves. Glove valves products are more varied than the gate valves because of its applicability.

The fluid movement through the valve seat is in the same direction as the operation direction of the obturator. Only the disk can move the short distance to completely release the valve, which results in faster opening of the glove valve than a gate valve. Hence this is advantage to any occasion that requires frequent valve operations. However, it demands the change in fluid direction that results in resistance, creating turbulence. Therefore, glove valve results in more pressure loss than glove valve.

Information

VALVE	GLOBE
RATING	CLASS 150~2500 LBS
SIZE	½” ~ 24”
TYPE	Bolted Bonnet, Union Bonnet, Screwed Bonnet
OPERATING	WHEEL, GEAR, AOV, MOV, POST INDICATOR
MATERIAL	Cast Bronze, Aluminum-Bronze, Nickel-Aluminum-Bronze Cast Carbon Steel, Stainless Steel, Alloy Steel, Iron
DESIGN SPEC.	API, ASME, MSS, BS
