HD Hyundai Samho

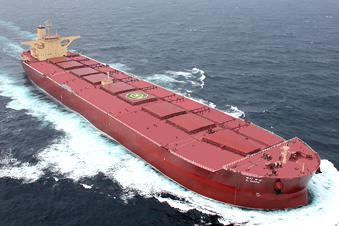

Bulk Carrier
Model
-
Series
Shipbuilding Division
Product Description
Bulk Carrier
Bulk Carrier 는 곡물, 석탄, 광석등 건화물을 운송하는 선박을 말하며 여러가지 물품을 함께 운송할 수 있는 선박을 General Cargo Carrier라 하며 Bulk Carrier는 산적화물선(살물선)이라고도 합니다.
| 제원 | 단위 |
| Length o.a. | abt. 330.00 m |
| Length b.p. | 321.00 m |
| Breadth, mld | 57.00 m |
| Depth, mld | 25.10 m |
| Design draught, mld | 18.00 m |
| Scantling draught, mld | 18.00 m |
| Service Speed on Design Draft at 90% MCR 15% Sea Margin | 14.9 Knots |
| Main Engine Fuel Oil Consumption at NCR (Based on 10,200 Kcal/Kg) | abt. 72.6 MT/Day |
| Endurance | abt. 30,400 Sea Miles |
| 제원 | 단위 |
| Length o.a. | abt. 292.00 m |
| Length b.p. | 283.50 m |
| Breadth, mld | 45.0 m |
| Depth, mld | 24.80 m |
| Design draught, mld | 16.50 m |
| Scantling draught, mld | 18.20 m |
| Service Speed on Design Draft at 90% MCR 15% Sea Margin | 14.7 Knots |
| Main Engine Fuel Oil Consumption at NCR (Based on 10,200 Kcal/Kg) | abt. 47.0 MT/Day |
| Endurance | abt. 31,700 Sea Miles |
| 제원 | 단위 |
| Length o.a. | abt. 235.00 m |
| Length b.p. | 229.00 m |
| Breadth, mld | 32.25 m |
| Depth, mld | 20.40 m |
| Design draught, mld | 12.20 m |
| Scantling draught, mld | 14.60 m |
| Service Speed on Design Draft at 90% MCR 15% Sea Margin | 14.5 Knots |
| Main Engine Fuel Oil Consumption at NCR (Based on 10,200 Kcal/Kg) | abt. 34.9 MT/Day |
| Endurence | abt. 21,900 Sea Miles |
