HWASHIN-HITECH
HSMS-200S SPLIT MECHANICAL SEAL
Model
-
Series
SPLIT TYPE MECHANICAL SEAL
Product Description

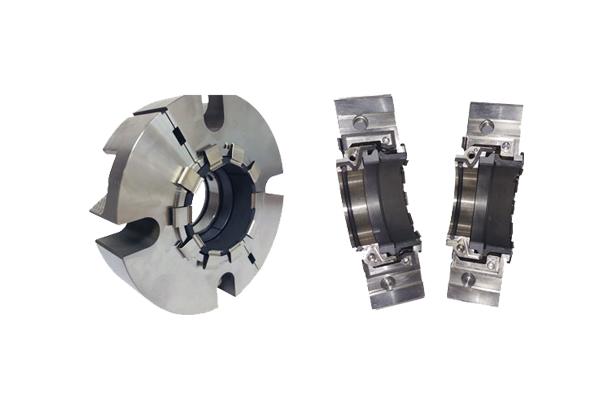

HSMS-200S SPLIT MECHANICAL SEAL
Simple and fast installation & field repair.
Fully split mechanical seal Compact design Applicable to high temp & high pressure Two connection in the gland provide easy access for flush piping.
Operation Parameters
| Equipment | Spec |
|---|---|
| Sizes | 30mm to 200mm |
| Pressure | 15bar |
| Temperature | 150℃ (300℉) |
| Speed | 12m/s (ex. 3600rpm up to 60mm) |
Materials of Construction
| Equipment | Spec |
|---|---|
| Seal Faces | Carbon vs. Silicon Carbide |
| Metal Parts | 316 Stainless Steel |
| Elastomer | FKM |
| Spring | Elgiloy |
Product List
SPLIT TYPE MECHANICAL SEAL
GAS & STEAM TURBINE PRODUCT

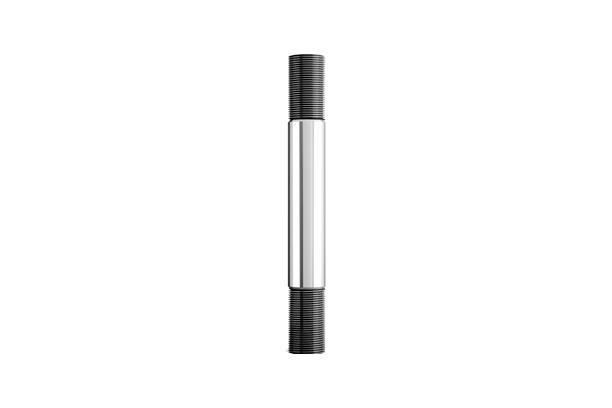

STUD BOLT

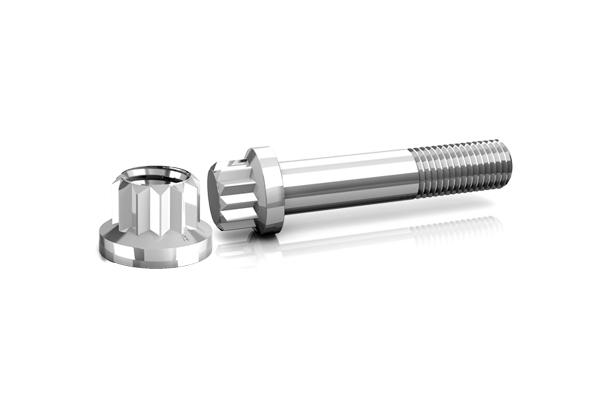

12PT BOLT & NUT

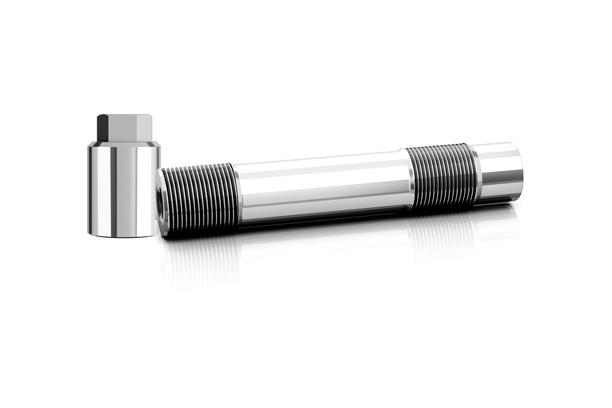

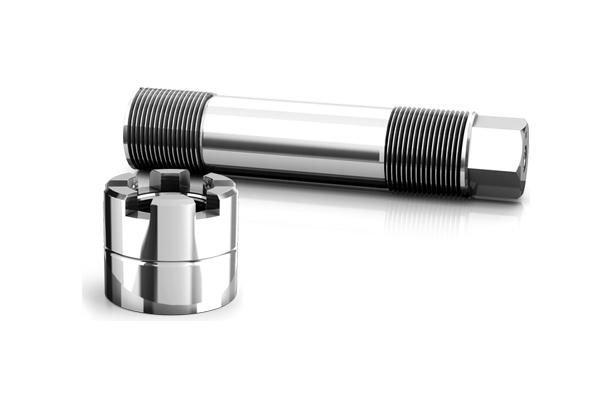

TAP STUD / SLOTTED NUT
COUPLING SET
THRU STUD / COVERED NUT

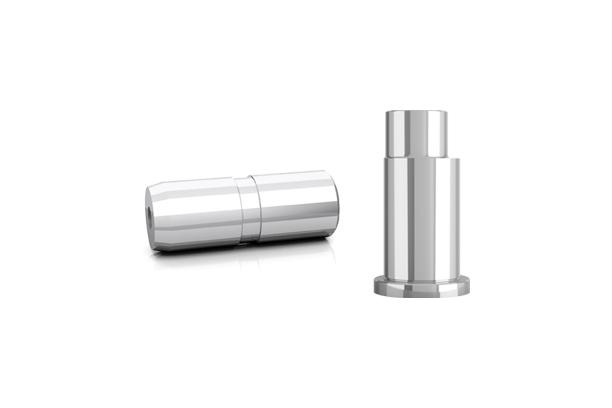

DOWEL PIN / ECCENTRIC PIN

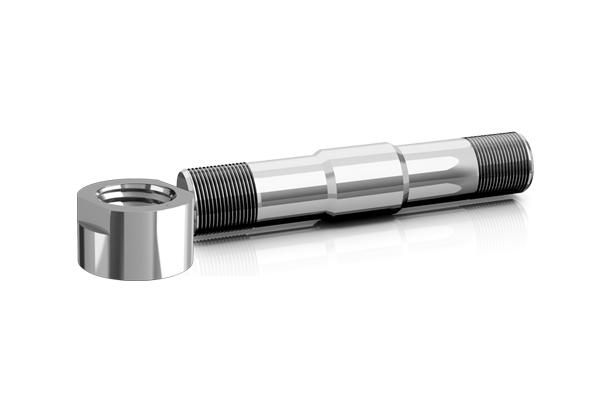

BODY BOUND STUD / ROUND NUT
